108/HTC Platinum Hybrid Series Loudspeakers

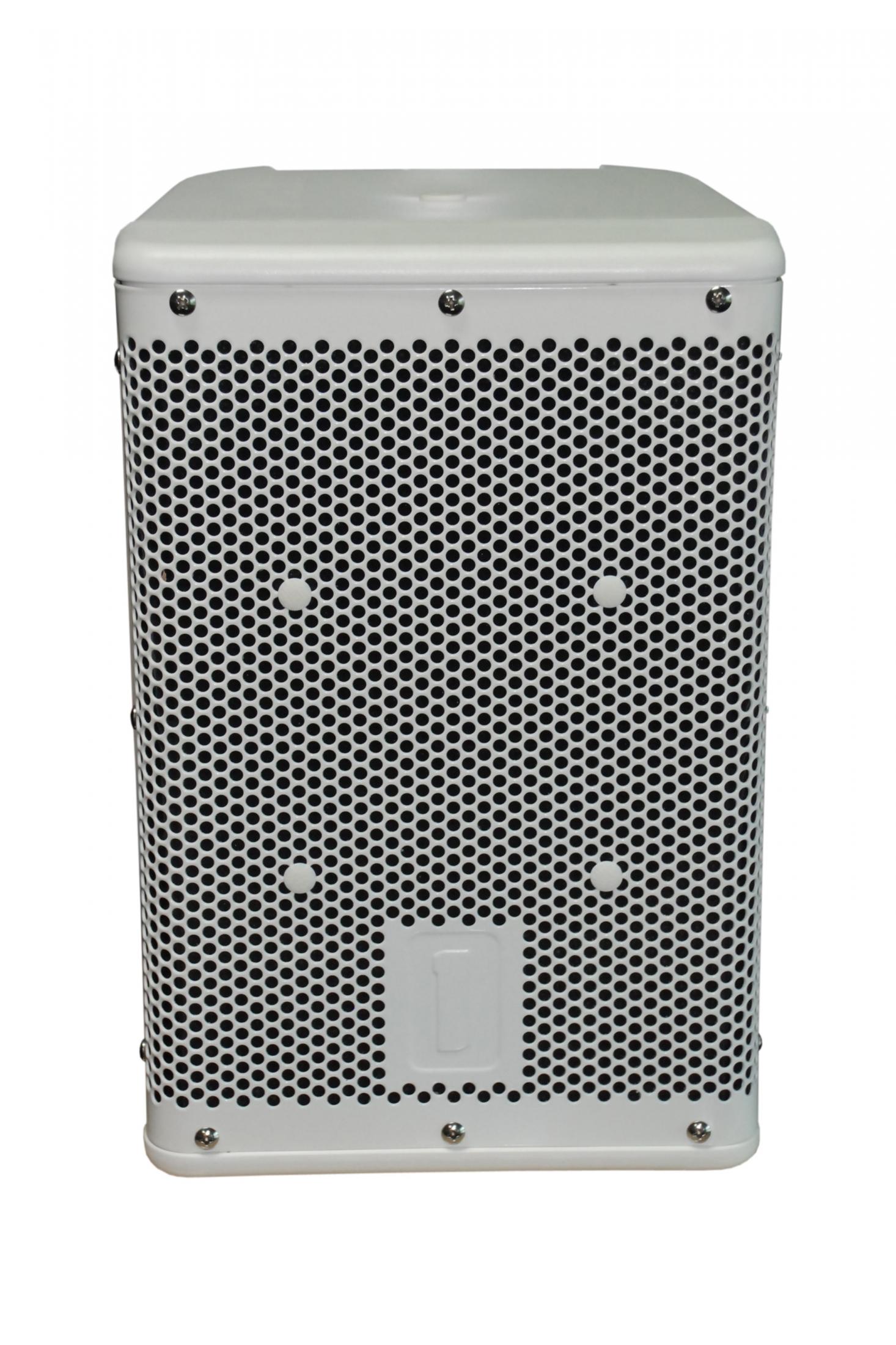

The 108/HTC is a compact, universal application direct weather speaker with big performance capabilities. The 108/HTC combines an 8-inch woofer with a 2-inch voice coil and a coaxially-mounted, medium-format compression driver into a solid, yet compact-sized enclosure. Thanks to its coax design with point-source sound emanation, the 108/HTC provides very high intelligibility, wide frequency response and smooth, even coverage. The 108/HTC can be installed anywhere outdoors – even on ships or next to oceans. The system's 316 grade marine stainless steel suspension hardware, enclosure reinforcements and its HYBRID stainless steel grille with marine-capable coating ensure extraordinary corrosion resistance and long useful life. The 108/HTC provides 200 watts continuous, 800 watts peak power handling and also offers high-impedance 70.7 – 100 volt operation with taps at 150, 75 and 37.5 watts. Low or high impedance operation is selected via separate barrier strips that eliminate reliability limiting switches. The 108/HTC delivers high output capability with full bandwidth response that provides high intelligibility as well as superb music reproduction. The 108/HTC is equipped with multiple M8 fly points to make it easy to install for indoor or outdoor applications. For nearfield and medium-range applications, the 108/HTC is sonically superior, budget-friendly and will deliver years of useful life.
